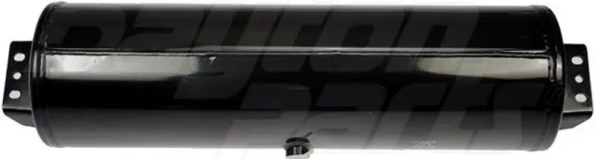

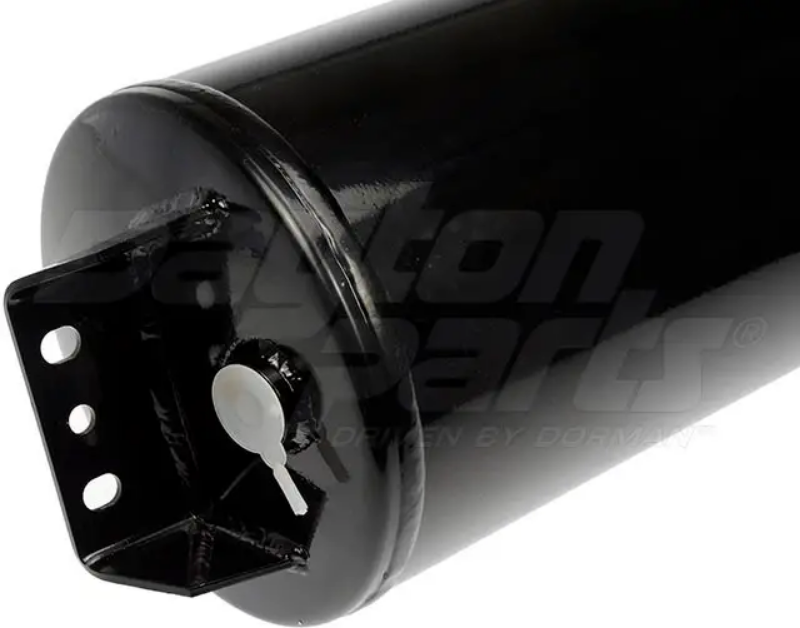

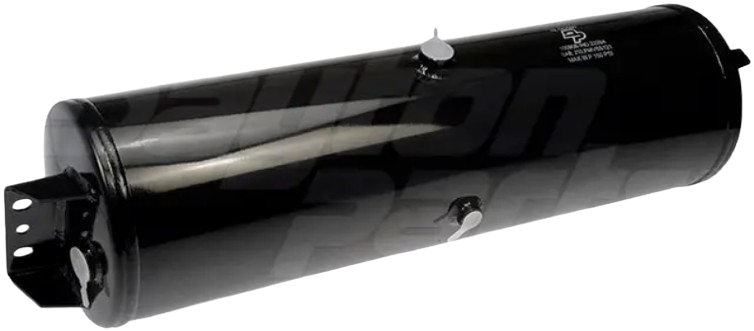

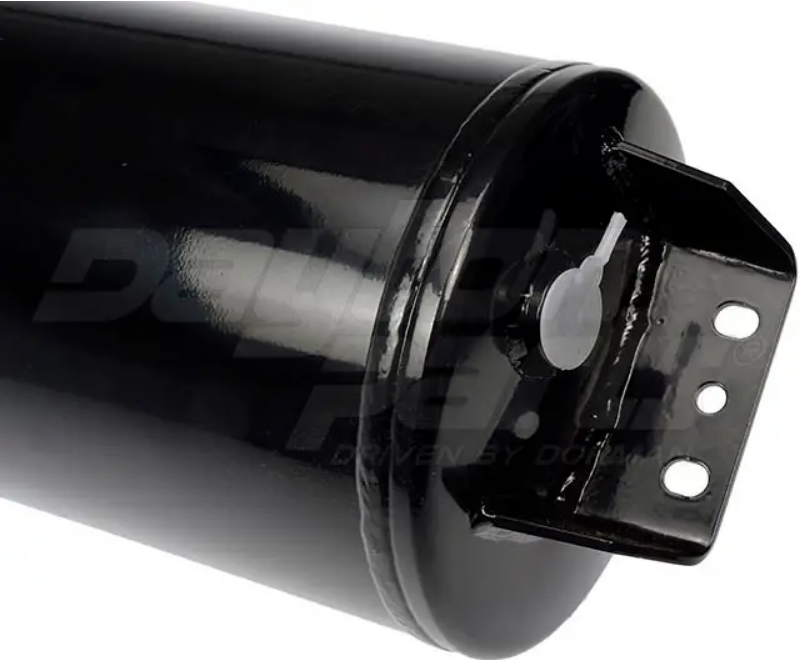

Heavy Duty Trailer Air Tank HT1270

This air brake air tank HT1270 matches the fit and function of an original HOOSIER tank HT1270 that is damaged or due for replacement. It is designed to help securely store compressed air for the braking system on specified vehicles.

• Direct replacement - this air brake air tank matches the fit and function of an original tank HT1270 on specified vehicle years, makes and models
• Ideal solution - engineered to restore proper compressed air storage when a factory-style seal is damaged, leaking, or due for replacement
• Durable construction - designed, manufactured and tested to strict specifications for reliable service
• Trustworthy quality - backed by team of product experts in the United States and more than a century of automotive experience

Cross Reference Numbers: 19810, E10732, Hoosier HT1270, R95510732

Diameter 8.25 in
Diameter B 8.25 in
End Port Thread Size 0.375 in
Length 29.31 in
Length (A) 32 in
Main Port Thread Size 0.75 in
Main Port Thread Size (Front and Back Ports) 0.375 in
Material Steel
Mount Centers 32 in
Mounting Bracket Type Type 1
Mounting Hardware Included No
Mounting Hole Quantity 4
Mounting Type Welded Bracket
Part Number 12-142500
Part Type Air Brake Air Tank
Port Quantity 4
Port Thread Type NPT
Port Type Type 1
Weight 23.000000
Working Pressure 150 PSI
