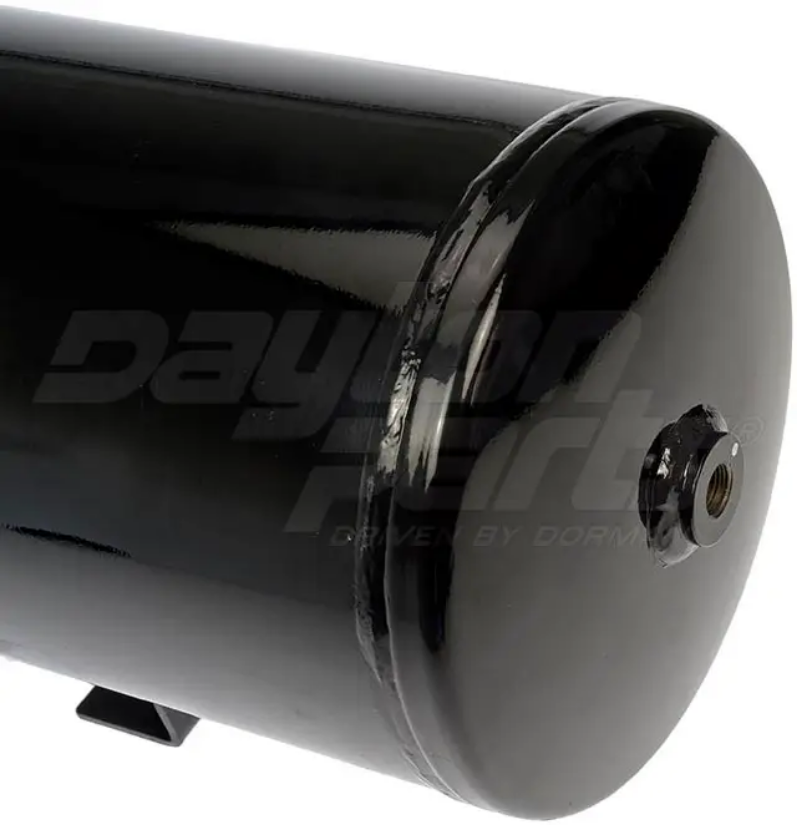

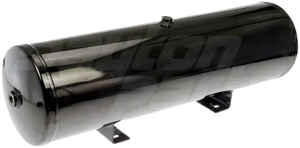

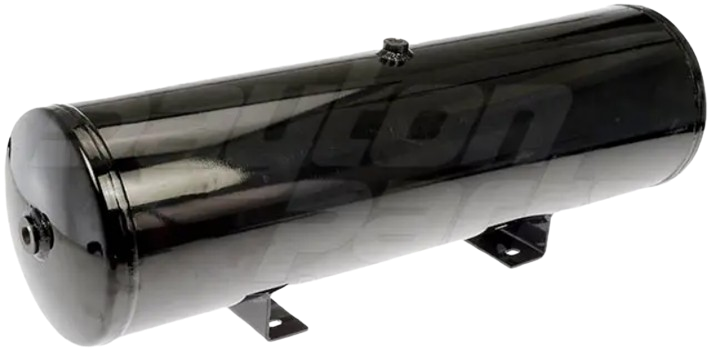

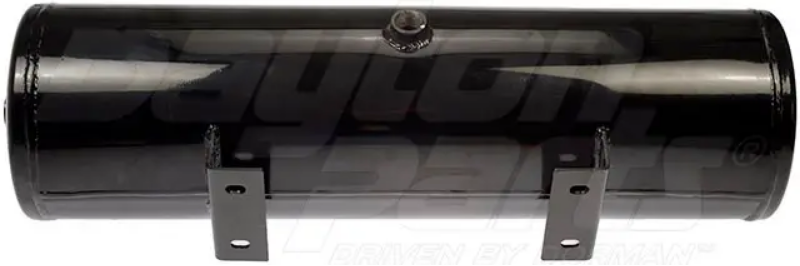

Heavy Duty Trailer Air Tank HT80194

This air brake air tank HT80194 matches the fit and function of an original HOOSIER tank HT80194 that is damaged or due for replacement. It is designed to help securely store compressed air for the braking system on specified vehicles.

• Direct replacement - this air brake air tank HT80194 matches the fit and function of an original tank HT80194 on specified vehicle years, makes and models
• Ideal solution - engineered to restore proper compressed air storage when a factory-style seal is damaged, leaking, or due for replacement
• Durable construction - designed, manufactured and tested to strict specifications for reliable service
• Trustworthy quality - backed by team of product experts in the United States and more than a century of automotive experience

Diameter 8.25 in
Diameter B 8.25 in
End Port Thread Size 0.375 in
Length 29.31 in
Length (A) 30.6 in
Main Port Thread Size 0.75 in
Main Port Thread Size (Front and Back Ports) 0.375 ; 0.375 in
Material Steel
Mount Centers 12 in
Mounting Bracket Type Top of Tank
Mounting Hardware Included No
Mounting Hole Quantity 4
Mounting Type Welded Bracket
Package Contents 1 Trailer Air Tank
Packaging Type Box
Part Number 12-142533
Part Type Air Brake Air Tank
Port Quantity 4
Port Thread Type NPT
Weight 23.000000
Working Pressure 150 PSI
