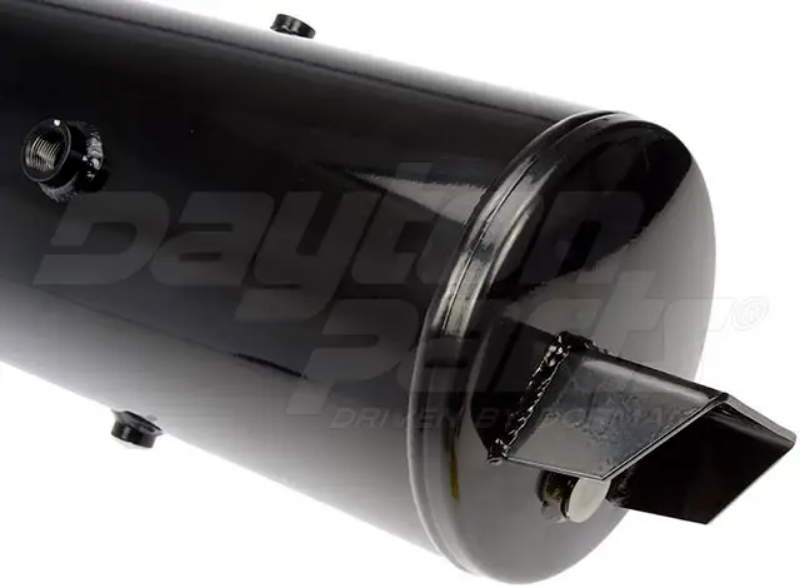

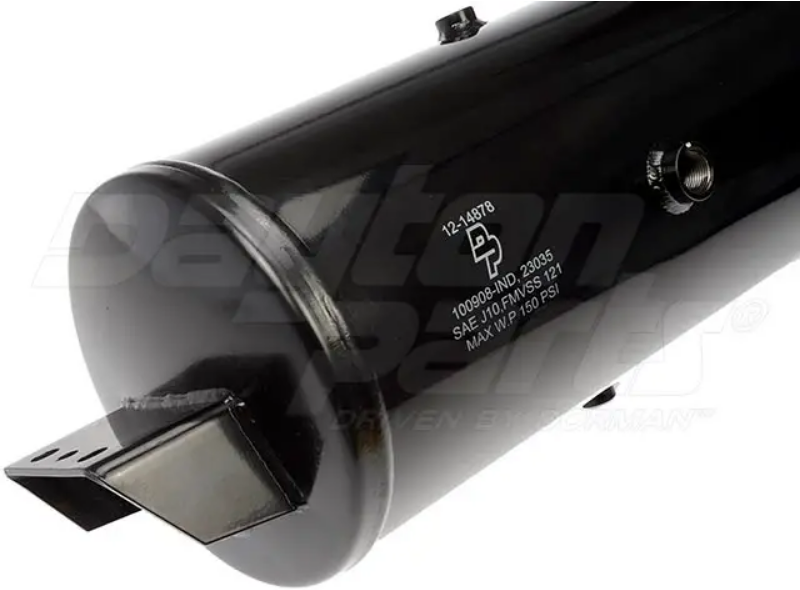

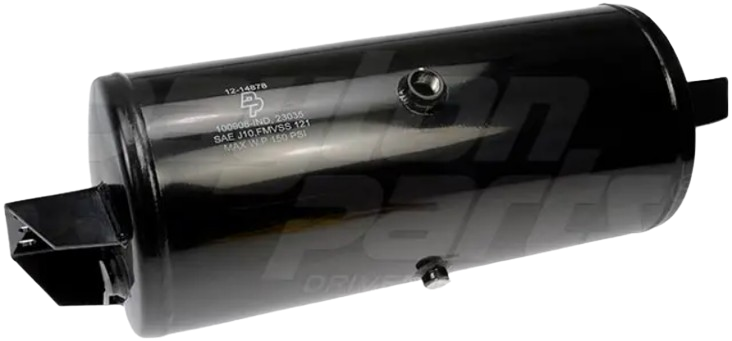

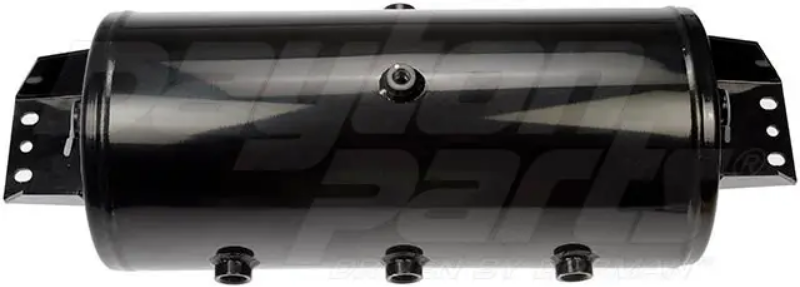

Heavy Duty Trailer Air Tank HT95272

This air brake air tank HT95272 matches the fit and function of an original HOOSIER tank HT95272 that is damaged or due for replacement. It is designed to help securely store compressed air for the braking system on specified vehicles.

• Direct replacement - this air brake air tank matches the fit and function of an original tank HT95272 on specified vehicle years, makes and models
• Ideal solution - engineered to restore proper compressed air storage when a factory-style seal is damaged, leaking, or due for replacement
• Durable construction - designed, manufactured and tested to strict specifications for reliable service
• Trustworthy quality - backed by team of product experts in the United States and more than a century of automotive experience

Diameter 9.5 in
Diameter B 9.5 in
End Port Thread Size 0.375 in
Length 22.56 in
Length (A) 27.5 in
Main Port Thread Size 0.75 in; 0.75 in; 0.75 in; 0.75 in; 0.25 in
Main Port Thread Size (Front and Back Ports) 0.75 in; 0.75 in; 0.75 in; 0.75 in; 0.25 in
Material Steel
Mount Centers 27.5 in
Mounting Bracket Type Type 1
Mounting Hardware Included No
Mounting Hole Quantity 4
Mounting Type Welded Bracket
Part Number 12-14878
Port Quantity 8
Port Thread Type NPT
Pressure Gauge Included No
Weight 27.550000
Working Pressure 150 PSI
